R2500 - Multi-Zone Temperature Controller for 8 - 16 zones
SKU: R2500

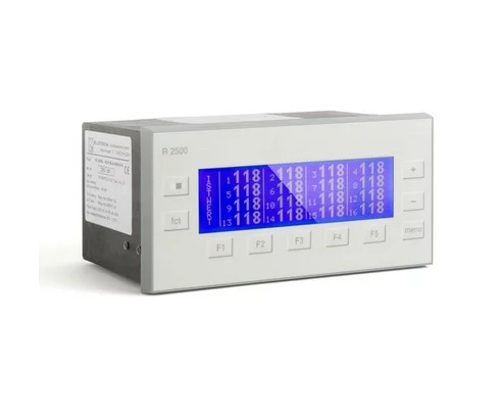

The multi-zone temperature controller R2500 is available with up to 16 control zones. It displays control functions and all key information clearly on its large screen. The modular device can be equipped optionally with different fieldbus interfaces. For international use, the appliance can be operated with 230 V 50 Hz, 115 V 50-60 Hz, 24 V 50-60 Hz and 24 VDC.
| DESIGNS AVAILABLE: | 8 | 10 | 12 | 16 zone 2-point controller | 8 zone 3-point controller | Integrated service interface for straightforward configuration and graphical display |
| SELF OPTIMISING: | Yes |
| INPUTS: | PT 100 | TC |
| OUTPUT: | Relay | 0/18 VDC |
| AUXILIARY VOLTAGE: | 230 VAC | 115 VAC | 24 VAC | 24 VDC |

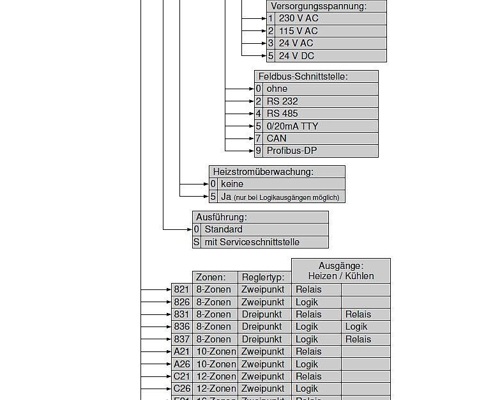

| OPTIONS: | Heating circuit monitoring | Interface, serial RS 232 (Modbus RTU, Elotech Std protocol) | Interface, serial RS 485 (Modbus RTU, Elotech Std protocol) | Interface, serial TTY (Modbus RTU, Elotech Std protocol) | Interface CAN Open | Interface Profibus DP | Custom versions to customer preferences |
| DIMENSIONS: | 96 x 96 x 122 mm, control panel installation. |
WHY CLARIAN UK?
As the exclusive UK partner of ELOTECH Industrieelektronik, a trusted global manufacturer, Clarian UK blends expertise with innovative design to deliver high-quality, cost-competitive heating solutions. Our dedication to rapid delivery and custom engineering guarantees your project’s success.
