R2200 - Multi-zone temperature controller for 4 - 16 zones
R2200 - Multi-zone temperature controller for 4 - 16 zones
Bespoke versions of this product can be requested by adding your requirements to the form at the bottom of this page.
R2200 - Multi-zone temperature controller for 4 - 16 zones
SKU: R2200
Networkable and remote control-capable with service interface.
The ultimate device for control cabinet installation with 4-16 control zones. Data interfaces RS 232, RS 485 inclusive, optionally available also with CAN, Profibus and service interface.

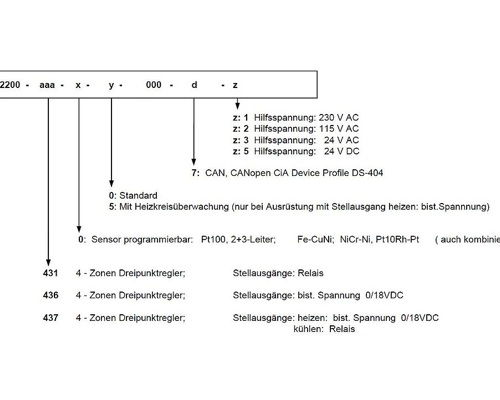

| DESIGNS AVAILABLE: | 4 | 6 | 8 zone 2-point controller |
| SELF OPTIMISING: | Yes |
| INPUTS: | PT 100 | TC |
| OUTPUT: | Relay | 0/18 VDC |
| AUXILIARY VOLTAGE: | 230 VAC | 115 VAC | 24 VAC | 24 VDC |
| OPTIONS: | Heating circuit monitoring Interface, serial RS 232 (Modbus RTU, Elotech Std protocol) | Interface, serial RS 485 (Modbus RTU, Elotech Std protocol) | Interface, serial TTY (Modbus RTU, Elotech Std protocol) | Interface CAN Open | Interface Profibus DP | Custom versions to customer preferences |
| DIMENSIONS: | 125 x 105 x 125 mm, for assembly on standard rails 35mm. |
