Mica Band Heaters GM.50
Mica Band Heaters GM.50
Bespoke versions of this product can be requested by adding your requirements to the form at the bottom of this page.

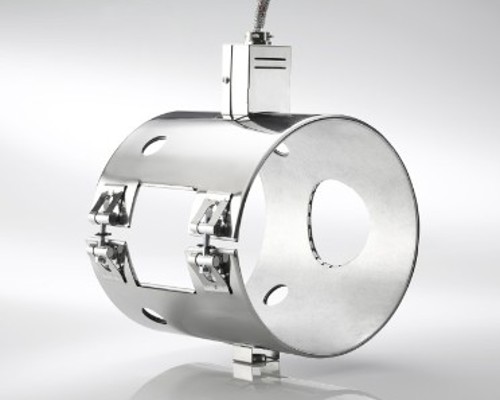

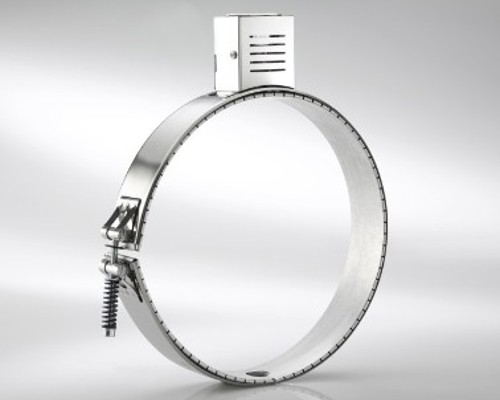

Mica Band Heaters GM.50
SKU: GM.50
Mica Band Heaters are primarily used to provide efficient and uniform heating to cylindrical surfaces. They are commonly used in:
Plastic Injection Moulding
Extrusion processes
Die Heads
Packaging Equipment
For elements with a diameter above 400mm, we recommend using more heating segments.
| Isolation Material: | Micanite |
| Diameter: | From 30 mm |
| Width: | 20 to 800 mm |
| Max Watt density: | 4 W/cmm2 |
| Voltages: | 230, 400V or other |
| Operating temperature: | Up to 350°C |
| Sheath material: | Stainless steel AISI430 |
| Heating conductor: | Nickel-Chrome 80/20 |
| Connection cable: | Temp. resistant cable with steel mesh up to 400°C |
When to select Micanite Insulated Band heater GM.50
Select Micanite when the working temperature is under 350°C and when you need max 4 W/cm2.
Production time is faster for Micanite band heaters and therefore has more attractive pricing.
AXIAL CONNECTION BOXES:
RADIAL CONNECTION BOXES:
TANGENTIAL CONNECTION BOXES:
